FS AUDIO INDIA PVT. LTD

2×500W RMS,extra efficiency,light weight digital amplifier
Deep Bass,offered by 2.5" VC 12inch subwoofer
Column consists of 4pcs 4" neodynium full range speakers(1" VC),extra clean and nature sound
Vertical Direction 0º and 10º adjustable

Specification
Model No.	NAC-1244 TOP	NAC-1244 SUBA
Components	4x4"(1"VC)NEO woofer	1x12"(2.5"VC)subwoofer
Frequency Response (Hz)	95-13k	38-500
Impedance (Ohms)	8	4
RMS Power (W)	150	500
Program Power(W)	300	1000
Dispersion(@6dB)	/	/
Sensitivity(dB)(1w/1m)	95	97
Max SPL(dB)	120	125
X-over(Hz)	/	/
Connection	Speakon	COMBO
Product Weight (kg)	6	25
Gross Weight (kg)	7	29
Product Size (cm)	13.5 x 67.3 x 14	36.4 x 48.2 x 53
Shipping Carton Size (cm)	19 x 72.5 x1 9.5	44.5 × 56.5 × 60.5
Passive/Active	Passive	Active
Amplifier Module
Output Power(EIA test standard,100Hz 1%THD)	2x500W/4 Ohms
S/N	95dB
Damping Factor	>500@100Hz
Protection	Over voltage protection up to 264V AC,overload output protection,clip,limiter

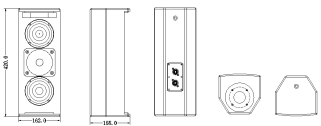

Drawing

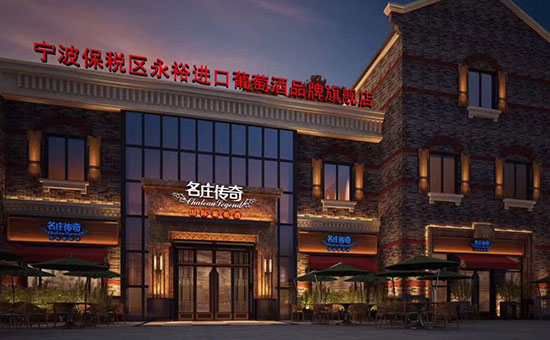

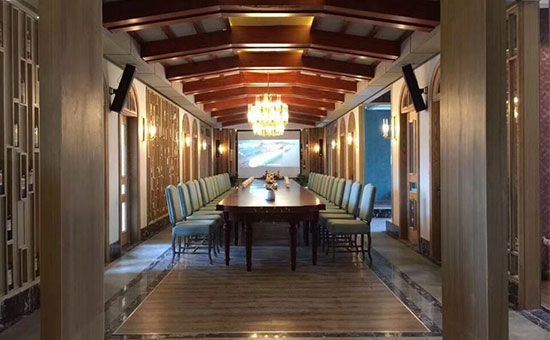

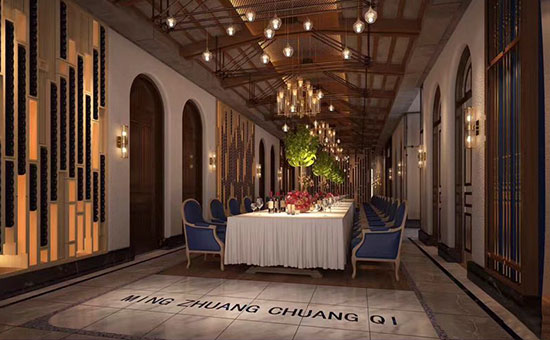

Very convenient use indoor or outdoor,

Can hang in the wall,or stack in the floor.

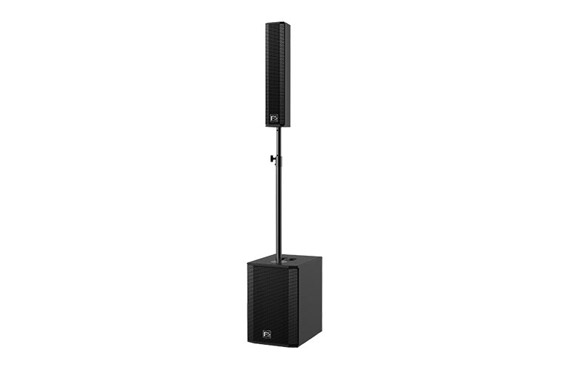

NAC-1244
