Specification
Model No.	NAC-500PRO TOP	NAC-500PRO SUBA
Components	2×6.5" woofer + 1" driver	15" subwoofer
Frequency Response (Hz)	85-15K	40-160
Impedance(Ohms)	4	4
RMS Power(W)	200	500
Program Power(W)	400	1000
Max SPL(dB)	120	128
Connection	Speakon	COMBO
Product Weight (kg)	7	20.5
Gross Weight (kg)	8	30.5
Product Size (cm)	20×22×56	40×53.6×52.8
Shipping Size (cm)	27.5×29.5×64	55.5×60.3×61.6

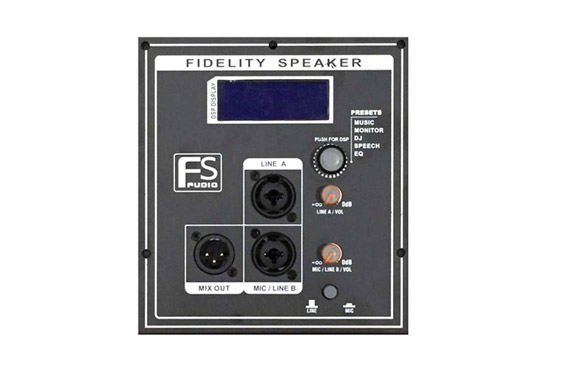

Amplifier Module
Output Power(EIA test standard,100HZ 1%THD)	/	SAT:500W/4Ohms SUB:500W/4Ohms
Drawing
