UCD Bi-amp,combines high efficiency of digital amplifier with analog sound;
Max SPL is 128dB
LCD DSP Control,easy choices of Music,Monitor,DJ,Speech presets,three bands EQ,Time Delay
Woofer with Loose-pressed Paper Cone,speed up cone movement rate,reinforce bass effect
Easy installation,designed with stands support,flying points and floor monitor angle

Specification
Components	12" woofer+1.75" driver
Frequency Response (Hz)	55-18k
Impedance (Ohms)	4
RMS Power (W)	500
Program Power (W)	1000
Dispersion (@6dB)	H100°× V60°
Max SPL (dB)	128
Connection	COMBO
Flying points	4×M10
Product Weight (kg)	18
Gross Weight (kg)	20
Product Size (cm)	36×35×60
Shipping Carton Size(cm)	40×39×66
Amplifier Module
Output Power(EIA test standard,100HZ 1%THD)	2×350W/4 Ohms
S/N	95dB
Damping Factor	＞500@100HZ
Protection	over voltage protection up to 264V AC, overload output protection, clip, limiter

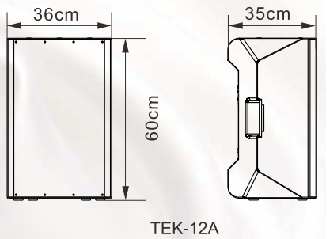

Drawing

TEK-12A
