FS AUDIO INDIA PVT. LTD

UCD Bi-amp,combines high efficiency of digital amplifier with analog sound;
CMax SPL is 130 dB
LCD DSP Control,easy choices of Music,Monitor,DJ,Speech presets,three bands EQ,Time Delay
Woofer with Loose-pressed Paper Cone,speed up cone movement rate,reinforce bass effect
Easy installation,designed with stands support,flying points and floor monitor angle

Specification
Components	15" woofer+1.75" driver
Frequency Response (Hz)	45-18K
Impedance (Ohms)	4
RMS Power (W)	600
Program Power (W)	1200
Dispersion (@6dB)	H100°× V60°
Max SPL (dB)	130
Connection	COMBO
Flying points	4×M10
Product Weight (kg)	22
Gross Weight (kg)	24
Product Size (cm)	45×38×70
Shipping Carton Size(cm)	51×44×77
Amplifier Module
Output Power(EIA test standard,100Hz 1%THD)	2×350W/4 Ohms
S/N	95dB
Damping Factor	＞500@100HZ
Protection	Over voltage protection up to 264V AC, overload output protection, clip, limiter
Drawing

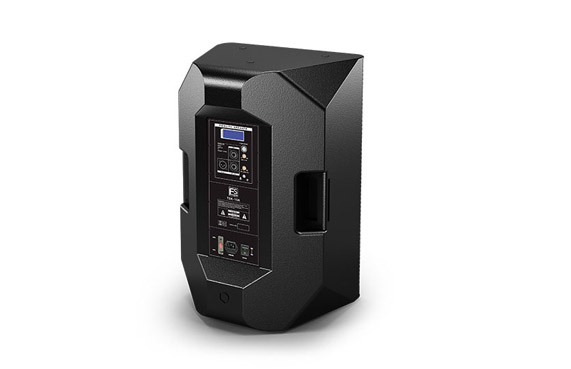

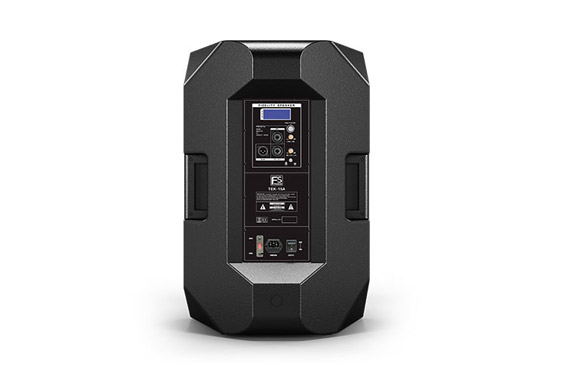

TEK-15A
